30mm Diameter Injection/Extrusion Screw Kit for Precious Plastic Project Screw, Barrel, Nozzle and Heaters
Regular price
$369.00
Sale price
$389.00
Shipping calculated at checkout.
This extrusion screw is designed for Precious Plastic 30mm diameter
Specification:
For Screw:
Length: 790mm
Feed zone channel depth: 6mm
Compression ratio: 3:1
Output: 0.1-5kg/h
Recommended Speed: 21 RPM
Material: SKD61 vacuum quenching
Without keyway at the end.
Recommended Motor: 250W Gear Induction Motor
Barrel:
Length: 710mm
OD: 50mm
Screw thread at the end: M45*2 Left Hand
Without Flange.
Material: 38CrMoAl nitrided

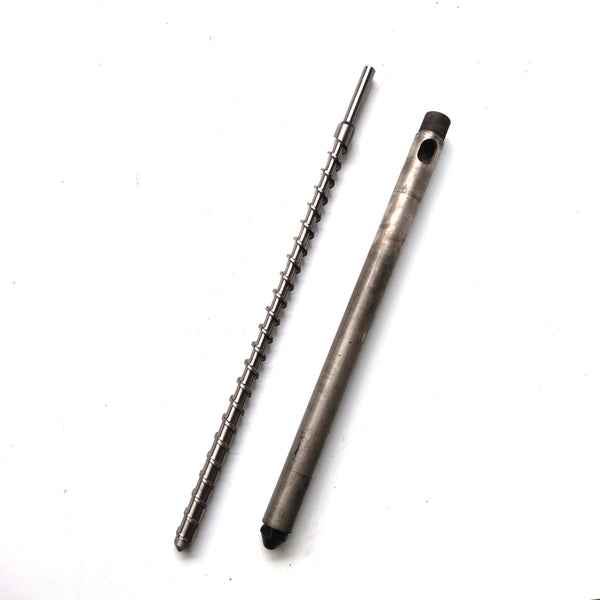

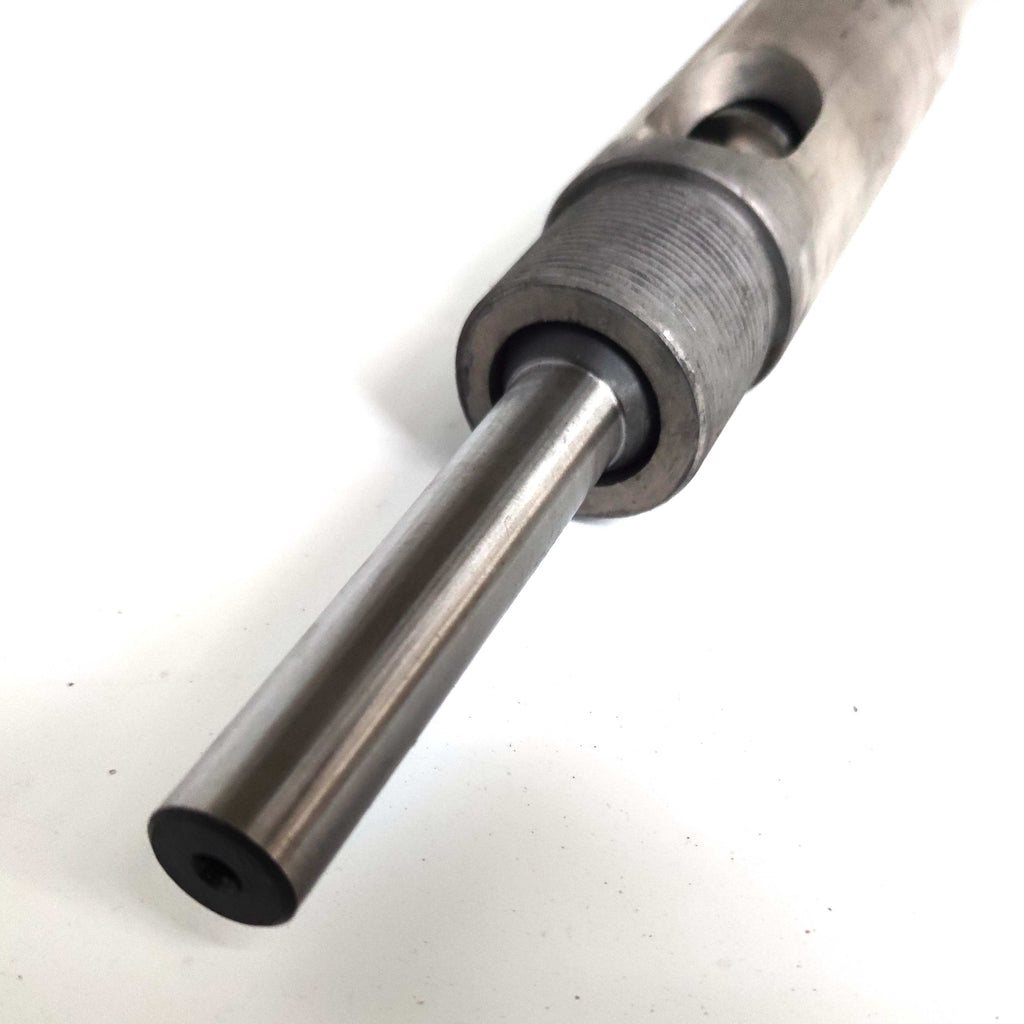

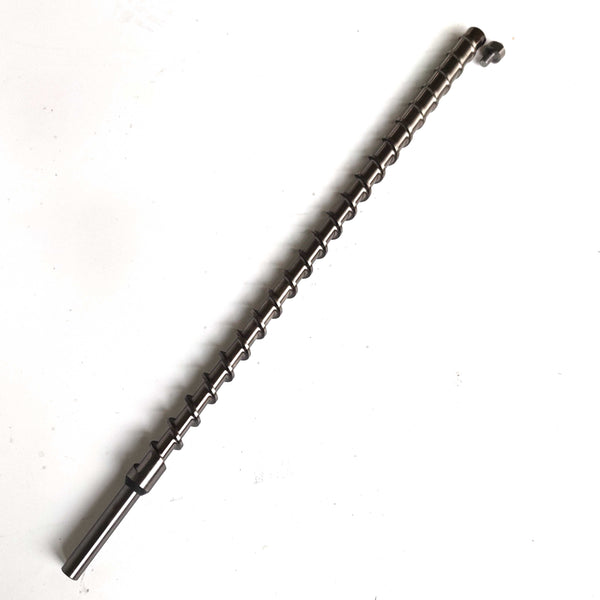

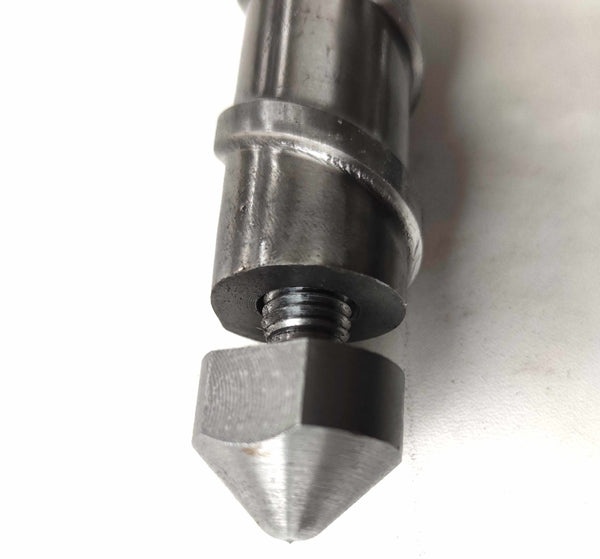

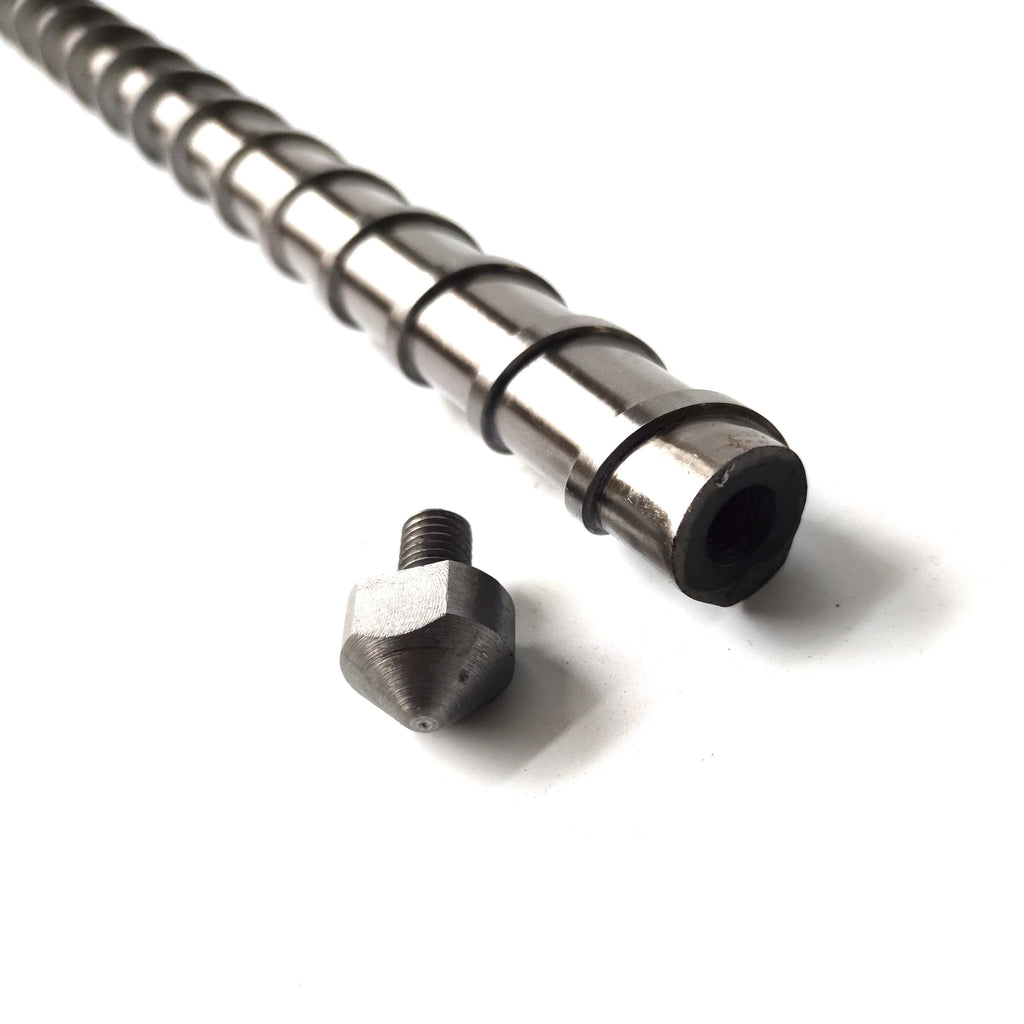

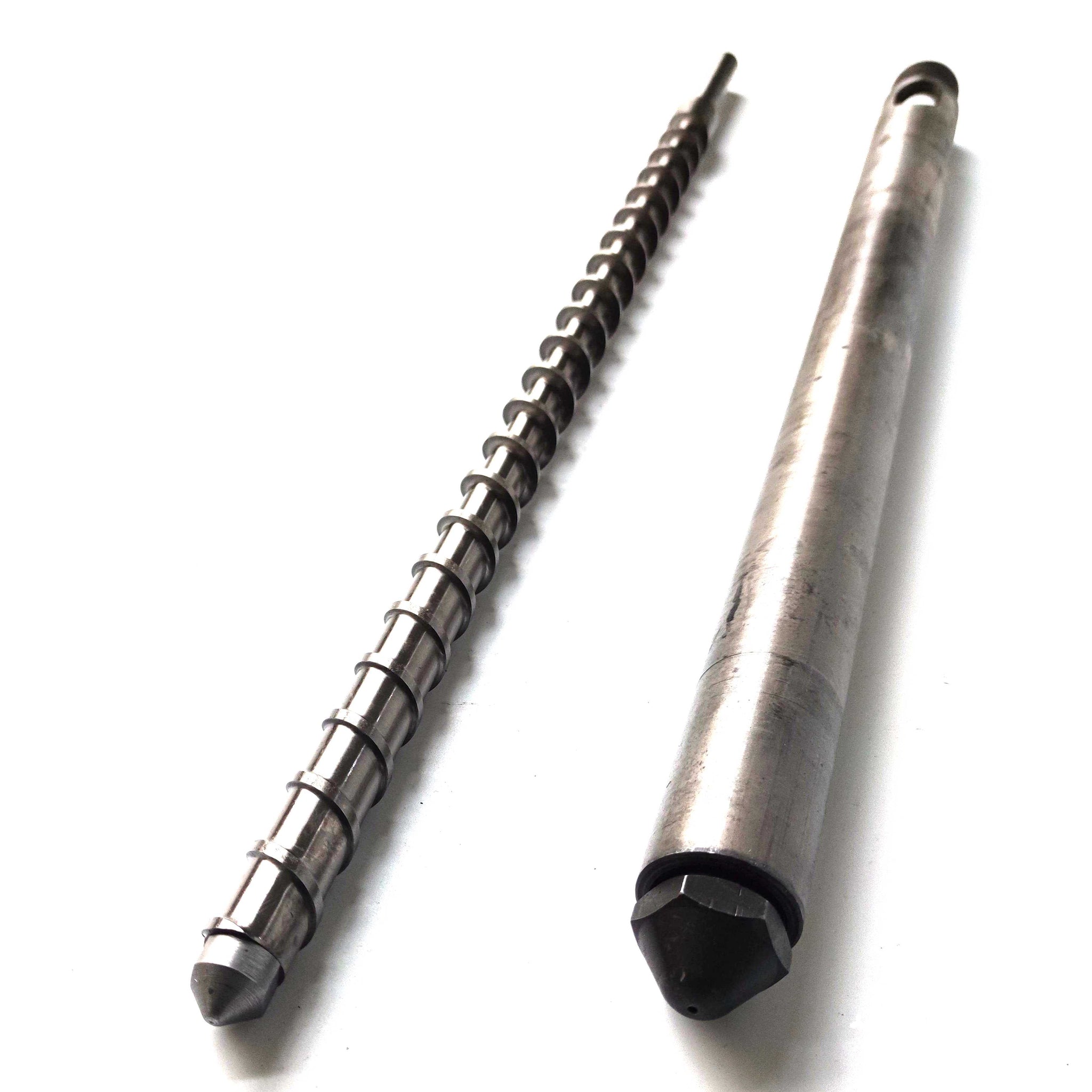

Picture:

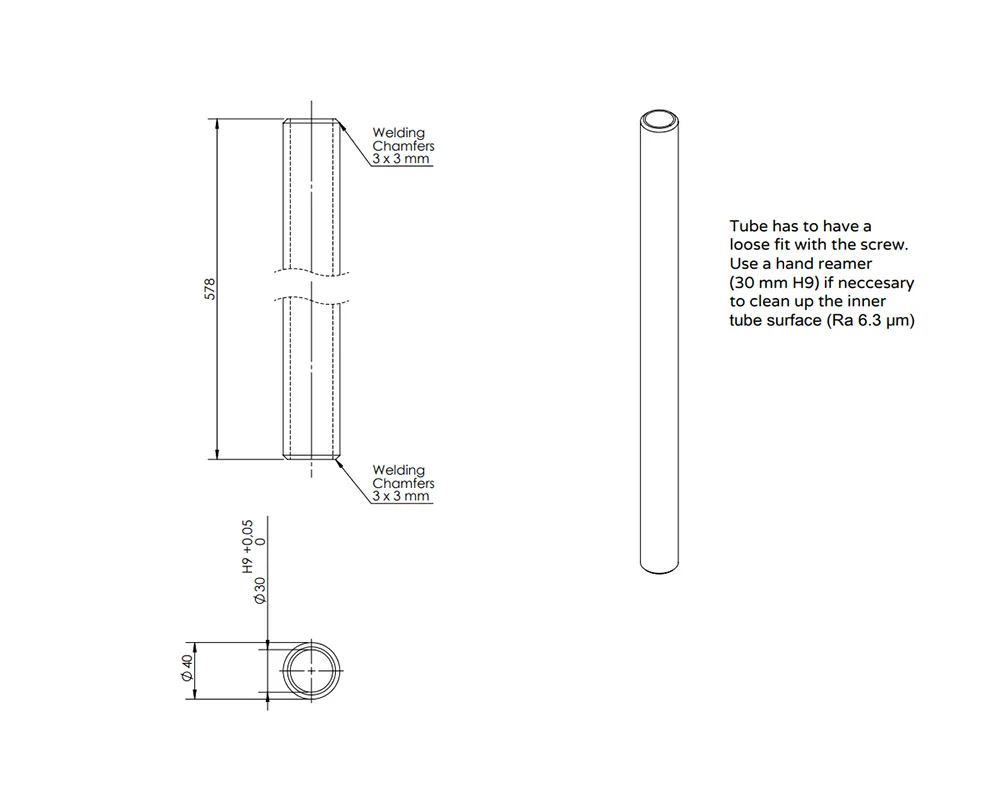

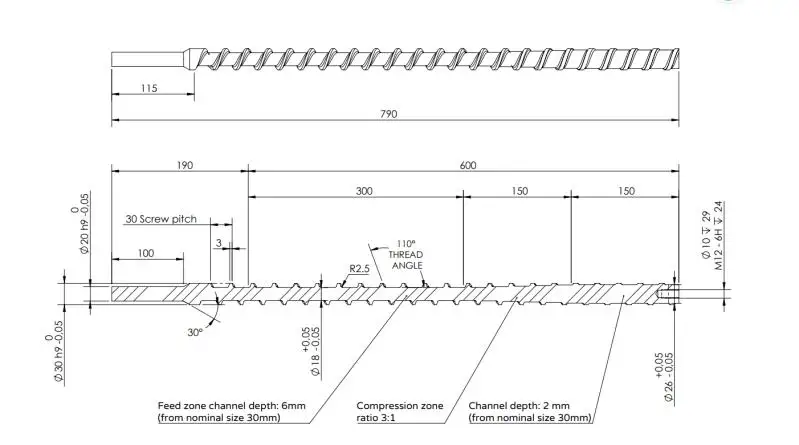

Drawing:
Note: Precious Plastic design barrel is also available. Plz feel free to contact us for more details.
